Informations produit
FabricantIDEAL
Réf. Fabricant61-647
Code Commande38AJ0926
Fiche technique
Voltage Measuring Range AC50V to 1kV
Meter Display TypeLED
Operating Temperature Min-
Operating Temperature Max-
Product Range-
Plug Type-
SVHCNo SVHC (08-Jul-2021)
Aperçu du produit

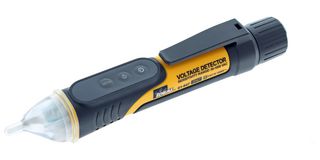

61-647 is a CAT IV 1000V AC, single range non-contact voltage tester with flashlight that automatically detects and indicates the presence of voltage within range of range of 50- 1000V AC. The tester can sustain a drop from 6.6ft (2m) and provides non-contact detection of voltage through an antenna enclosed in plastic at the tip of the tester which senses the presence of the electromagnetic field present around live conductors. The tip is illuminated by a green LED when powered on and switches to a red flashing LED, and audible beep that increase in frequency as the voltage level increases.
- Lanyard tie-off point
- Auto-power off (APO)
- Low battery indication
- Include 2 x 1.5V AAA battery
- LED flashlight in tip operates independently of tester functions and used to illuminate work area
- Audible notification disable
- 2-year warranty
- IP67 rated
- UL listed
Spécifications techniques
Voltage Measuring Range AC
50V to 1kV
Operating Temperature Min
-
Product Range
-
SVHC
No SVHC (08-Jul-2021)
Meter Display Type
LED
Operating Temperature Max
-
Plug Type
-
Documents techniques (2)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (08-Jul-2021)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
