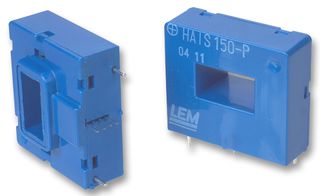

HAIS 100-P
Current Transducer, HAIS Series, 100A, -300A to 300A, 1 %, Voltage Output, 4.75 Vdc to 5.25 Vdc
Contactez-moi quand le produit sera à nouveau en stock
| Quantité | Prix |
|---|---|
| 1+ | 40,060 $ |
| 10+ | 37,780 $ |
| 25+ | 36,260 $ |
Informations produit
Aperçu du produit
The HAIS 100-P is a Current Transducer for the electronic measurement of DC, AC, pulsed, mixed with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). Hall effect measuring principle. Low power consumption. Isolated plastic case recognized according to UL94V-0. High immunity to external interference.
- Galvanic isolation between primary and secondary circuit
- 2500V Isolation test voltage
- +5V Single power supply
- Fixed offset and gain
- Small size and space-saving
- Only one design for wide current ratings range
- VREF IN/OUT
Applications
Motor Drive & Control, Power Management, Maintenance & Repair, Industrial, Test & Measurement
Avertissements
Risk of electrical shock, when operating the transducer, certain parts of the module can carry hazardous voltage. Ignoring this warning can lead to injury and/or cause serious damage.
Spécifications techniques
Voltage
4.75V to 5.25V
1%
100A
-40°C
HAIS - P/TP Series
4.75V to 5.25V
AC / DC / Pulsed
Open Loop, Hall Effect
Through Hole
85°C
No SVHC (27-Jun-2024)
