59070-010
Proximity Reed Sensor, 20.32 mm, Cable Mount, 500 mA, -40°C to 105°C, 59070 Series
500 Vous pouvez réserver des unités dès maintenant
| Quantité | Prix |
|---|---|
| 1+ | 6,120 $ |
| 10+ | 5,110 $ |
| 25+ | 4,730 $ |
| 50+ | 4,480 $ |
| 100+ | 4,220 $ |
| 500+ | 3,730 $ |
| 1000+ | 3,550 $ |
| 2500+ | 3,340 $ |
Informations produit
Aperçu du produit

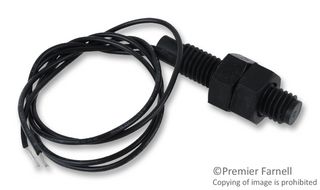

The 59070-010 is a small plastic Barrel Sensor with a M8 x 1.25 thread and 38.1mm long. This sensor features SPST standard normally open contacts. It is capable of switching up to 265VAC/300VDC at 10VA and operates through non-ferrous materials such as wood, plastic or aluminum. Simple installation and adjustment using supplied retaining nuts. Well suited for usage in high-moisture and contaminated environments. The non-contact solution, aesthetically more appealing than push-button or lever mechanical-type switches and ideal for battery-powered applications as the contacts do not draw power when in the non-activated state. The reed contacts of the sensor last for millions of operating cycles under micro-controller voltage and current logic-level loads.
- Magnetically-operated proximity sensor
- Threaded barrel with retaining nuts
- Excellent for switching microcontroller logic level loads
- Customer-defined sensitivity
Applications
Sensing & Instrumentation, Security, Industrial, Automation & Process Control, Power Management
Spécifications techniques
Cable
-40°C
59070 Series
500mA
105°C
To Be Advised
Documents techniques (2)
Produits associés
1 produit trouvé
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
