MAXREFDES131#

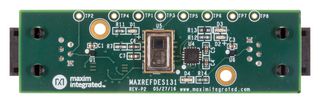

The MAXREFDES131# is a 1-wire Grid-EYE sensor. It is a sensing solution featuring the Panasonic AMG8833 Grid-EYE® and the 1-Wire® bus enabled by the DS28E17. The system enables presence sensing, people counting and gestures while tethered up to 100m along the 1-wire bus. The board features RJ-11 connectors and convenient mounting holes for quick evaluation and implementation. Typical application includes building automation, people counting, lighting control, presence sensing and gestures.

• Example source code for interfacing with MAXREFDES131 is available for Arm mbed, Arduino platforms
• Design conveniently works with MAXREFDES132 a hardware 1-wire shield
• Demonstration GUI allows for visual feedback of 10 daisy-chained MAXREFDES131 1-wire GridEYE sensors
• Building automation; People counting; Lighting control; Presence sensing; Gestures
