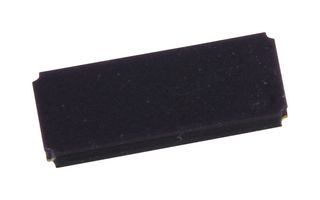

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMICRO CRYSTAL
Réf. FabricantCC4V-T1A 32.768KHZ +-20PPM 12.
Code Commande94M6637
Gamme de produitCC4V-T1A
Fiche technique
2 708 En Stock
Quantité | Prix |
---|---|
1+ | 3,350 $ |
10+ | 3,210 $ |
25+ | 2,980 $ |
50+ | 2,710 $ |
100+ | 2,450 $ |
250+ | 2,170 $ |
500+ | 1,840 $ |
Prix pour :Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
3,35 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantMICRO CRYSTAL
Réf. FabricantCC4V-T1A 32.768KHZ +-20PPM 12.
Code Commande94M6637
Gamme de produitCC4V-T1A
Fiche technique
Frequency Nom32.768kHz
Crystal CaseSMD, 5mm x 1.9mm
Frequency Stability + / --
Load Capacitance12.5pF
Frequency Tolerance + / -20ppm
Product RangeCC4V-T1A
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (17-Jan-2023)
Aperçu du produit
The CC4V-T1A 32.768KHZ +-20PPM 12 is a SMD Tuning Fork Crystal has been specially designed for miniature industrial and telecom applications. It is available for extended operating temperature range and is compliant with the AEC-Q200 quality standards.
- High stability, low aging
- Low power consumption
- High shock and vibration resistance
- For SMD mounting Au plated pads
Applications
Industrial, Automotive
Spécifications techniques
Frequency Nom
32.768kHz
Frequency Stability + / -
-
Frequency Tolerance + / -
20ppm
Operating Temperature Min
-40°C
SVHC
No SVHC (17-Jan-2023)
Crystal Case
SMD, 5mm x 1.9mm
Load Capacitance
12.5pF
Product Range
CC4V-T1A
Operating Temperature Max
85°C
