EV87D54A

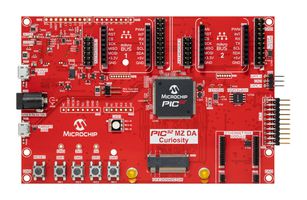

EV87D54A is a PIC32MZ DA curiosity development kit. This is a low-cost Curiosity Development platform puts the PIC32MZ DA graphics microcontroller on a flexible, accessible development platform. The perfect meld of performance and flexibility, it includes an integrated graphics adaptor for interfacing the microcontroller's built-in multi-layer graphics controller and 2d graphics processor. Also included are an integrated programmer and debugger, which requires no additional hardware to get started. Users can expand functionality through MikroElectronika mikroBUS™ Click™ adapter boards, add Ethernet connectivity with the Microchip PHY Daughter Board, add Wi-Fi™ connectivity capability using the Microchip expansions.

• PIC32MZ DA graphics MCU
• PKoB for faster debugging and programming
• Graphics adaptor
• 2 x32 header for audio I/O using Microchip audio daughter boards
• Ethernet PHY daughter board header
• Host mode power jumper, multiple power source option, 4 user switches, 1 RGB LEDs , 3 regular LED’s
• Extremely compact form factor (10cm X 5cm or lesser)
• Easy access to MCU I/O
• Updated SNAP board programmer debugger, Arduino header
• Real time clock/calendar 32.768kHz crystal

Contenu

PIC32MZ DA curiosity development board, Graphics daughter card, Daughter card mounting screws.
