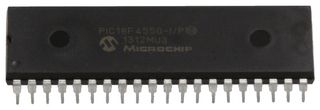

PIC18F4550-I/P

The PIC18F4550-I/P offers high computational performance with the addition of high endurance and enhanced flash program memory. In addition to these features, the PIC18F4550-I/P introduces design enhancements that make these microcontrollers a logical choice for many high performance, power sensitive applications.

• Full Speed USB 2.0 (12Mbit/s) interface
• 1K byte dual port RAM + 1K byte GP RAM
• Full speed transceiver
• 16 endpoints (IN/OUT)
• Streaming port
• Internal pull up resistors (D+/D-)
• 48MHz performance (12 MIPS)
• Peripheral - Enhanced USART module and enhanced capture/compare/PWM (ECCP) module
• Flash/data EEPROM retention of <gt/>40 years
• Self-programmable under software control
• 8 x 8 Single-cycle hardware multiplier
• In-Circuit Debug (ICD) via two pins

Applications

Automation & Process Control, Communications & Networking, Consumer Electronics, Embedded Design & Development, Multimedia, Portable Devices, Robotics, Sensing & Instrumentation, Security

Avertissements

ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
