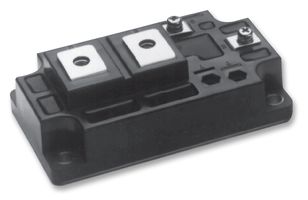

CM500HA-34A
IGBT Module, Single, 500 A, 1.7 kV, 5 kW, 150 °C, Module
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 55 semaine(s)
Informations produit
FabricantMITSUBISHI ELECTRIC
Réf. FabricantCM500HA-34A
Code Commande18M9978
Fiche technique
Transistor PolarityN Channel
IGBT ConfigurationSingle
DC Collector Current500A
Continuous Collector Current500A
Collector Emitter Saturation Voltage1.7kV
Collector Emitter Saturation Voltage Vce(on)1.7kV
Power Dissipation Pd5kW
Power Dissipation5kW
Operating Temperature Max150°C
Collector Emitter Voltage V(br)ceo1.7kV
Junction Temperature, Tj Max150°C
Transistor Case StyleModule
IGBT TerminationTab
No. of Pins4Pins
Collector Emitter Voltage Max1.7kV
IGBT TechnologyIGBT 5 [Trench Gate]
Transistor MountingPanel
Product Range-
SVHCTo Be Advised
Spécifications techniques
Transistor Polarity
N Channel
DC Collector Current
500A
Collector Emitter Saturation Voltage
1.7kV
Power Dissipation Pd
5kW
Operating Temperature Max
150°C
Junction Temperature, Tj Max
150°C
IGBT Termination
Tab
Collector Emitter Voltage Max
1.7kV
Transistor Mounting
Panel
SVHC
To Be Advised
IGBT Configuration
Single
Continuous Collector Current
500A
Collector Emitter Saturation Voltage Vce(on)
1.7kV
Power Dissipation
5kW
Collector Emitter Voltage V(br)ceo
1.7kV
Transistor Case Style
Module
No. of Pins
4Pins
IGBT Technology
IGBT 5 [Trench Gate]
Product Range
-
