19073-0017
Ring Tongue Terminal, M5, #10, 18 AWG, 0.8 mm², Avikrimp 19073 Series, Red
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 0,452 $ |
| 10+ | 0,394 $ |
| 25+ | 0,309 $ |
| 50+ | 0,301 $ |
| 100+ | 0,292 $ |
| 250+ | 0,269 $ |
| 500+ | 0,258 $ |
| 1000+ | 0,246 $ |
Informations produit
Produits de remplacement pour 19073-0017
6 produit(s) trouvé(s)
Aperçu du produit

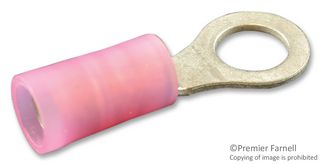

The 19073-0017 is a Ring Tongue Terminal made of copper with tin plated finish. The Avikrimp™ 19073 series terminal comes with a red nylon (PA) insulated closed barrel. It accepts 18 to 22AWG wire. The Avikrimp™ solderless ring terminal includes enhanced current carrying capability and increased reliability. The Avikrimp™ style ring is pre-insulated on the barrel to prevent arcing between adjacent terminals when on a barrier strip terminal block. The barrel has a tin-plated brass ferrule, which allow for both a conductor and insulation crimp (strain relief) to provide optimum vibration resistance and fulfill TUV, VDE, IEC and DIN performance requirements. The Avikrimp™ also permits 360° of rotation in the crimp jaws.
- UL94V-2 Flammability rating
Applications
Industrial
Spécifications techniques
M5
#10
0.8mm²
Red
No SVHC (25-Jun-2025)
10
18AWG
Avikrimp 19073 Series
Nylon (Polyamide)
Documents techniques (4)
Produits associés
2 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
