63800-2820

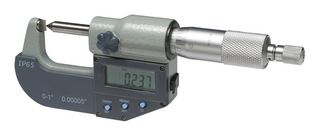

Micrometer, Crimp Height, Digital, 25mm Measuring Range, 0.002mm Accuracy
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMOLEX
Réf. Fabricant63800-2820
Code Commande78R2512
Gamme de produit207124 Series
Egalement appeléGTIN UPC EAN: 884982289086
Fiche technique
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 7 semaine(s)
Informations produit
FabricantMOLEX
Réf. Fabricant63800-2820
Code Commande78R2512
Gamme de produit207124 Series
Egalement appeléGTIN UPC EAN: 884982289086
Fiche technique
Measuring Range Max25mm
Graduations0.001mm
Accuracy0.002mm
No. of Anvils1
Product Range207124 Series
SVHCTo Be Advised
Aperçu du produit
The 63800-2820 is a Micrometer designed to measure crimp height. The T9999 series hand tool has an anvil (thin blade) that supports the top of the crimp while a spindle (pointed section) contacts the bottom radial surface. The crimp height micrometer features 0 to 25mm measuring range, 0.001mm resolution and 0.002mm accuracy. This meter comes with LCD display, locking dial, battery cap and function keys etc.
- ≤35µA Power consumption
- IP54 and IP65 Protection rating
- 0 to 40°C Operating temperature range
Applications
Test & Measurement
Spécifications techniques
Measuring Range Max
25mm
Accuracy
0.002mm
Product Range
207124 Series
Graduations
0.001mm
No. of Anvils
1
SVHC
To Be Advised
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Non applicable
Conforme à la norme RoHS Phthalates:Non applicable
SVHC :To Be Advised
