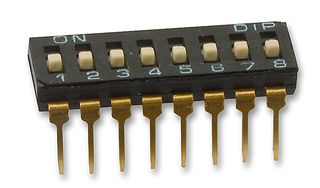

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
14 427 En Stock
Quantité | Prix |
---|---|
1+ | 2,330 $ |
25+ | 2,050 $ |
50+ | 1,840 $ |
100+ | 1,730 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
2,33 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantMULTICOMP PRO
Réf. FabricantMCNDI-08S
Code Commande97K4452
Gamme de produitNDI
Fiche technique
No. of Circuits8Circuits
Switch Actuator StyleSlide
Switch MountingThrough Hole
Contact ConfigurationSPST
Contact Voltage DC Max24V
Pitch Spacing2.54mm
Contact Current DC Max25mA
Product RangeNDI
Switch TypeDIP Unsealed
SVHCTo Be Advised
Aperçu du produit
The MCNDI-08S is a single-pole single-throw (SPST) 8-way low profile DIL Switch, machine insertable DIP. The DM series switch has gold plated over nickel contact, gold terminal and black high temperature base/cover. Splay terminals allow for automatic insertion by IC insertion machine. Insert moulding of terminals and ultrasonic welding improve flux proofness and enable flux washing in whole by top tape sealing. Double contacts offers high reliability. Terminal plating by gold give excellent results when soldering.
- Vapour phase solderable, IR-reflow solderable
- 100MΩ at 500V Insulation resistance
- 500VAC for one minute Dielectric strength
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Automation & Process Control, Communications & Networking
Spécifications techniques
No. of Circuits
8Circuits
Switch Mounting
Through Hole
Contact Voltage DC Max
24V
Contact Current DC Max
25mA
Switch Type
DIP Unsealed
Switch Actuator Style
Slide
Contact Configuration
SPST
Pitch Spacing
2.54mm
Product Range
NDI
SVHC
To Be Advised
Documents techniques (1)
Produits de remplacement pour MCNDI-08S
8 produit(s) trouvé(s)
Produits associés
1 produit trouvé
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :To Be Advised
