MP-HS-2210M-1-0300

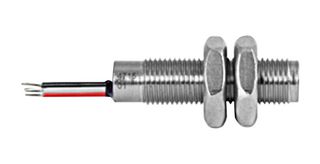

Hall Effect Proximity Sensor, Current, Voltage, Wire Leads, M10, 2.7 to 24 VDC
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
236 En Stock
| Quantité | Prix |
|---|---|
| 1+ | 32,180 $ |
| 100+ | 27,190 $ |
| 250+ | 25,390 $ |
| 500+ | 23,940 $ |
| 1000+ | 22,760 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
32,18 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantMULTICOMP PRO
Réf. FabricantMP-HS-2210M-1-0300
Code Commande82AK2756
Fiche technique
Sensor TypeMagnetic Sensor
Sensor TerminalsWire Leads
Operating Temperature Min-20°C
Operating Temperature Max85°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Aperçu du produit
MP-HS-2210M-1-0300 is a 3-wire, bipolar, M10 threaded hall sensor. Hall sensors are ideal for high-frequency applications where accuracy and product life are critical. Typical applications include position control, speed measurement RPM, non-touch switching, level sensing and flow detection. It operates with a supply voltage of up to 24VDC making it suitable for the automotive industry. It offers flat pack, tubular threaded and flange mount solutions. It is IP67 rated.
- Compact size, various switching sensitivities
- Supply voltage range from 2.7 to 24V, 24V output voltage max, 25mA output current max
- Supply current is 1.6mA typical (TJ=25°C and VSUP= 12V)
- 1μs output fall time and rise time max (RL = 820, CL= 20pF, TJ=25°C, VSUP=12V)
- Delay time is 16μs typ (TJ=25°C), output refresh period range from 1.6 to 2.66μs (VSUP=12V, TJ=25°C)
- Nickel plated brass housing, UL1007/1569, AWG 24 cable
- Epoxy potting compound
- Operating temperature range from -20°C to + 85°C
Applications
Industrial, Automation & Process Control, Automotive
Contenu
x1 Hall effect proximity sensor.
Remarques
Versatile and cost-effective solution for a variety of applications.
Spécifications techniques
Sensor Type
Magnetic Sensor
Operating Temperature Min
-20°C
Product Range
-
Sensor Terminals
Wire Leads
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Documents techniques (1)
Législation et Questions environnementales
US ECCN:Unknown
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (21-Jan-2025)
