MP000291

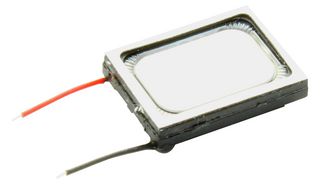

MINIATURE SPEAKER, 8 OHM, 20KHZ
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMULTICOMP PRO
Réf. FabricantMP000291
Code Commande07AH4314
Gamme de produitMulticomp Pro Speaker
Fiche technique
Impossible de récupérer les informations sur la disponibilité
Informations produit
FabricantMULTICOMP PRO
Réf. FabricantMP000291
Code Commande07AH4314
Gamme de produitMulticomp Pro Speaker
Fiche technique
Driver TypeMiniature
Impedance8ohm
External Diameter - Metric-mm
Power Rating Nom700mW
External Width - Metric11mm
Resonant Frequency700Hz
Sound Pressure Level (SPL)89dB
Speaker ShapeRectangular
External Diameter - Imperial-"
External Width - Imperial0.433"
Product Dimensions15mm x 11mm x 3mm
Frequency Range0Hz to 20kHz
Frequency Response Min0Hz
Frequency Response Max20kHz
Temperature Grade-
Speaker MountingBare Mount
IP Rating-
IP Rating-
Product RangeMulticomp Pro Speaker
Speaker MountingBare Mount
Power Rating Max1W
External Length - Metric15mm
External Depth - Metric3mm
External Length - Imperial0.591"
External Depth - Imperial0.118"
SVHCNo SVHC (21-Jan-2025)
Spécifications techniques
Driver Type
Miniature
External Diameter - Metric
-mm
External Width - Metric
11mm
Sound Pressure Level (SPL)
89dB
External Diameter - Imperial
-"
Product Dimensions
15mm x 11mm x 3mm
Frequency Response Min
0Hz
Temperature Grade
-
IP Rating
-
Product Range
Multicomp Pro Speaker
Power Rating Max
1W
External Depth - Metric
3mm
External Depth - Imperial
0.118"
Impedance
8ohm
Power Rating Nom
700mW
Resonant Frequency
700Hz
Speaker Shape
Rectangular
External Width - Imperial
0.433"
Frequency Range
0Hz to 20kHz
Frequency Response Max
20kHz
Speaker Mounting
Bare Mount
IP Rating
-
Speaker Mounting
Bare Mount
External Length - Metric
15mm
External Length - Imperial
0.591"
SVHC
No SVHC (21-Jan-2025)
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (21-Jan-2025)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
Traçabilité des produits
