MP009009

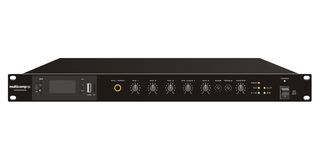

The Multicomp PR OMP009009 (120 Watt) is six input, 1U, PA Mixer/Amplifier and is perfect for a variety of small to medium-scale paging and background music applications. Six input mixer allows the connection of four microphones and two line-level audio sources, plus an input for telephone paging. Front panel controls are provided for each input, master volume, bass, and treble. These amplifiers can read MP3 files from a USB flash disk or TF card, plus it has FM radio and support for Bluetooth.

• Standard 19” Rackmount design
• 4ohm to 16ohm and 70V speaker outputs
• One ¼” MIC input in front of the unit, three screw terminal MIC inputs in the rear of the unit
• Two unbalanced RCA AUX inputs in the rear of the unit; one RCA balanced output in the rear of the unit
• One unbalanced EMC screw terminal output in the rear of the unit
• Power requirements: 120VAC, 60Hz @ 120W/180W
• Support mp3/TUNER/Bluetooth functions with remote control
• Front panel controls for each input, master volume, bass, and treble
• The class D amplifier circuit
• Equipped with level indication, overload, and protection indicators, and has good protection for short circuits, overload, and overheating situations.
• LINE/MIC/Phantom Power Switch

Applications

Audio, Commercial, Multimedia, Security, Sound & Video, Smart City Infrastructure, Signal Processing

Remarques

Dimensions: 484×295×44mm
