NC3MRX

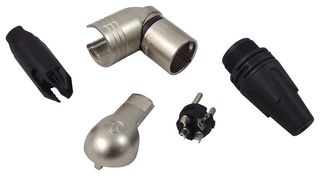

The NC3MRX is a 3-pole Right Angle Male XLR Cable Connector with latch locking device, nickel housing, POM strain relief and silver-plated bronze contacts. It has polyamide insert, polyurethane boot, nickel-plated zinc die-cast shell and zinc die-cast locking element. This RX series connector features reliable, easier to assemble and improves contact integrity as well cable strain relief. Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster, boot with polyurethane gland gives high protection to cable bending stresses.

• Extra slim right-angle connector
• 7 Selectable cable outlet positions
• With improved locking recess without window, more stringent housing increases durability
• Sleek and ergonomic design - Valuable and handy
• UL94HB Flammability rating
• IP40 Protection rating
• Complies with IEC 61076-2-103 standard
• Solderability complies with IEC 68-2-20 standard
• ≤3mΩ Contact resistance
• <gt/>2GΩ Insulation resistance
• 16A Current rating per contact
• <lt/>50V Voltage rating
• -30 to +80°C Temperature range

Applications

Audio
