NC3MXX
XLR Connector, 3 Contacts, Plug, Cable Mount, Silver Plated Contacts, Metal Body, XX Series
4 337 En Stock
Vous en voulez davantage ?
Livraison standard gratuite
pour les commandes de plus de 200$
| Quantité | Prix |
|---|---|
| 1+ | 6,410 $ |
| 10+ | 6,150 $ |
| 25+ | 5,480 $ |
| 50+ | 5,300 $ |
| 100+ | 5,200 $ |
| 200+ | 5,110 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
6,41 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantNEUTRIK
Réf. FabricantNC3MXXCopie
Code Commande98J0233
Gamme de produitXX Series
Egalement appeléGTIN UPC EAN: 7613187000379
Fiche technique
No. of Contacts3Contacts
Connector MountingCable Mount
Contact PlatingSilver Plated Contacts
Connector Body MaterialMetal Body
Product RangeXX Series
SVHCNo SVHC (21-Jan-2025)
Aperçu du produit

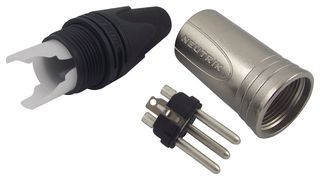

NC3MXX is a 3-pole male cable connector with nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improve contact integrity as well as cable strain relief.
- Male conn with improved locking recess w/o "window", more stringent housing increases durability
- Improved chuck type strain relief provide higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long-lasting and dependable
- Internal thread on shell is well protected against any damage
- Capacitance between contacts: less than or equal to 4pF
- Contact resistance : less than or equal to 3mohm, rated voltage: less than 50V
- Temperature range from -30°C to +80°C, IP40 protection class
Spécifications techniques
No. of Contacts
3Contacts
Connector Mounting
Cable Mount
Connector Body Material
Metal Body
SVHC
No SVHC (21-Jan-2025)
Gender
Plug
Contact Plating
Silver Plated Contacts
Product Range
XX Series
Documents techniques (4)
Produits de remplacement pour NC3MXX
1 produit trouvé
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (21-Jan-2025)
