INFCTRA-0000-R
Counter, Infinity®, Rate Meter, INFCTRA Series, 6 Digits, 115 Vac

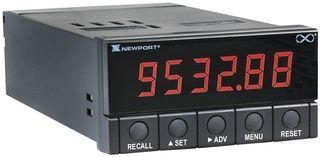

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantNEWPORT ELECTRONICS
Réf. FabricantINFCTRA-0000-R
Code Commande96F6826
Gamme de produitINFCTRA Series
Fiche technique
Modèle arrêté
Informations produit
FabricantNEWPORT ELECTRONICS
Réf. FabricantINFCTRA-0000-R
Code Commande96F6826
Gamme de produitINFCTRA Series
Fiche technique
No. of Digits / Alpha6
Digit Height14.2mm
Supply Voltage Min-
Supply Voltage Max-
Panel Cutout Height45.72mm
Panel Cutout Width91.44mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Product RangeINFCTRA Series
SVHCTo Be Advised
Aperçu du produit
The INFCTRA-0000-R is a 6-digit non-isolated Rate Meter/Totalizer with red LED display and configured as a rate-meter. It offers user programming via the 5 front-panel keys. The programs are stored in non-volatile memory with three levels of program lockout for security. It is TTL, CMOS, NPN open collector, contact closure and magnetic pickup compatible and selected by DIP switch.
- Fixed decimal point or auto ranging is standard
- Single input
- Rate and totalize selected by menu functions
- Programmable or auto ranging decimal point
- Blank leading zeros
- 1/x Rate measurement technique
- 0.30sec Gate time
Applications
Industrial, Metering, Test & Measurement
Spécifications techniques
No. of Digits / Alpha
6
Supply Voltage Min
-
Panel Cutout Height
45.72mm
Operating Temperature Min
0°C
Product Range
INFCTRA Series
Digit Height
14.2mm
Supply Voltage Max
-
Panel Cutout Width
91.44mm
Operating Temperature Max
50°C
SVHC
To Be Advised
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Non
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :To Be Advised
