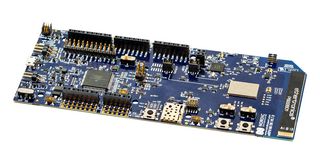

NRF9160-DK
Development Kit, NRF9160, 32bit, ARM Cortex-M33
| Fabricant | NORDIC SEMICONDUCTOR |
|---|---|
| Réf. Fabricant | NRF9160-DKCopie |
| Délai d’approvisionnement standard du fabricant | 70 semaines |
| Code Commande | 84AC2295 |
| Votre numéro de pièce | |
| Fiche technique |
| Quantité | Prix |
|---|---|
| 1+ | 241,720 $ |
Informations produit
| Fabricant | NORDIC SEMICONDUCTOR |
|---|---|
| Réf. Fabricant | NRF9160-DKCopie |
| Délai d’approvisionnement standard du fabricant | 70 semaines |
| Code Commande | 84AC2295 |
| Fiche technique | |
| Silicon Manufacturer | Nordic Semiconductor |
| No. of Bits | 32bit |
| Silicon Family Name | - |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M33 |
| Silicon Core Number | NRF9160 |
| Kit Contents | Dev Kit NRF9160, eSIM Card |
| Product Range | - |
| SVHC | No SVHC (23-Jan-2024) |
Aperçu du produit
NRF9160-DK is an affordable, pre-certified single board development kit for evaluation and development on the nRF9160 SiP for LTE-M and NB-IoT. It also includes an nRF52840 board controller that for example can be used to build Bluetooth® LE gateway. It has dedicated LTE-M and NB-IoT antenna that supports wide range of bands to operate globally. nRF9160 DK has the same certification coverage as nRF9160 SiP. LTE bands B1-B5, B8, B12-B14, B17-B20, B25-B26, B28 and B66 have been certified. An integrated patch antenna for GNSS, and 2.4GHz chip antenna for use with Bluetooth LE are included on PCB. All GPIOs and interfaces are available via connectors. The kit is Arduino Uno Rev3 compatible, meaning it can easily interface with external device shields. User-programmable LEDs (4), buttons (2) and switches (2) are available for output and input. Suitable for logistics and asset tracking, smart city & smart agriculture, predictive maintenance & industrial, wearables & medical applications.
- Certified operation: AT&T, Bell, China Telecom, Deutsche Telekom, KDDI, Telstra, Verizon, Vodafone
- Certified for global operation: GCF, PTCRB
- nRF52840 board controller
- SEGGER J-Link OB programmer/debugger
- Pins for measuring power consumption, e.g. with Nordic's Power Profiler Kit II
- User-programmable LEDs (4), buttons (2) and switches (2)
- 3.0-5.5V supply from external or 5V
- Supply from USB
- Dedicated application processor and memory: 64MHz Arm® Cortex®-M33 CPU
- 1MB flash & 256KB RAM memory, 4 x SPI/UART/TWI, PDM, I2S, PWM, ADC
Contenu
Dev Kit NRF9160, eSIM card (from iBasis preloaded with 10MB).
Spécifications techniques
| Silicon Manufacturer | Nordic Semiconductor |
|---|---|
| Silicon Family Name | - |
| Core Sub-Architecture | Cortex-M33 |
| Kit Contents | Dev Kit NRF9160, eSIM Card |
| SVHC | No SVHC (23-Jan-2024) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | NRF9160 |
| Product Range | - |
