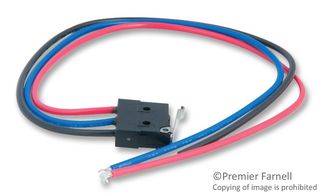

D2SW-3L3MS
Microswitch, Miniature, Simulated Roller Lever, SPDT, Wire Leaded, 3 A, 30 VDC
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 9,860 $ |
| 5+ | 9,400 $ |
| 10+ | 8,930 $ |
| 25+ | 7,290 $ |
| 50+ | 7,290 $ |
| 100+ | 7,270 $ |
| 250+ | 7,270 $ |
Informations produit
Aperçu du produit
The D2SW-3L3MS is a single-pole double-throw (SPDT) sealed Snap Action Switch with simulated roller lever and molded lead wires. This high-quality watertight miniature snap action switch body meets IP67 (IEC 529) requirements. The monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed. It may be panel mounted using M2.3 mounting screws with plane washers or spring washers to securely mount the switch.
- 30mΩ Maximum initial value contact resistance
- 100MΩ at 500VDC Minimum insulation resistance
- IEC IP67 Protection rating
- 1000VAC 50/60Hz for 1 minute between terminals of the same polarity Dielectric strength
Applications
Industrial
Remarques
Prevent the switch from coming into contact with oil and chemicals. Otherwise, damage and deterioration to the switch materials may occur.
Spécifications techniques
Miniature
SPDT
3A
D2SW Series
60gf
Simulated Roller Lever
Wire Leaded
30VDC
250VAC
To Be Advised
