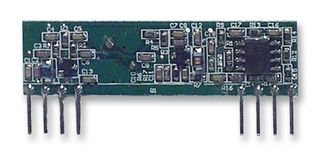

QAM-RX2

QAM-RX2-433 is an AM Super regenerative receiver module with 433MHz. The Quasar UK AM hybrid receiver module provides a complete radio receiver which can be used to receive undecoded data from the range of Quasar (UK) transmitter modules. The module is very simple to operate and offers a low current consumption allowing for extended battery life when used in mobile applications. Data can be fed directly into a microprocessor or decoding device. Thus keeping the component count down and ensuring a low hardware cost. All receivers are compatible producing a CMOS/TTL output and only require connections to power and antenna.

• Super regenerative radio receiver
• CMOS / TTL output
• Stable operating frequency
• Low current consumption
• 5Vdc operating voltage
• ASK demodulation

Applications

Wireless, Security, Industrial, RF Communications
