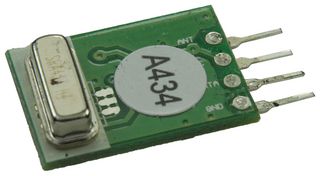

QAM-TX1
RF Module, AM ASK Data Transmitter, 433 MHz
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Modèle arrêté
Aperçu du produit
The Quasar UK range of AM radio modules provides complete RF transmitter and receiver radio modules which can be used to communicated data at up to 3KHz between CMOS/TTL devices. The modules are very simple to operate and offer low current consumption, allowing for extended battery life when used in mobile applications. Data can be supplied directly to or from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost. The modules are compatible with the Quasar UK range of AM receivers to provide a complete solution.
- Complete RF Transmitter
- Transmit range Up To 50m
- CMOS / TTL Input
- No adjustable components
- Very stable operating frequency
- Low current consumption (Typ 11mA)
- Wide operating voltage (1.5-5v)
- ASK modulation
- Available as 315 or 433 MHz
- SMT miniature package 11 x 8 x 3mm
Applications
Wireless, Security, Industrial, RF Communications
Spécifications techniques
RF Modulation
ASK
Frequency
433.92MHz
Supply Voltage Min
1.5VDC
Supply Current
22mA
Product Range
-
Data Rate Max
3000bps
Sensitivity dBm
-
Supply Voltage Max
5VDC
RF Transmitter Applications
-
SVHC
No SVHC (12-Jan-2017)
Documents techniques (1)
Législation et Questions environnementales
US ECCN:5A991
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :No SVHC (12-Jan-2017)
