S01-05-R

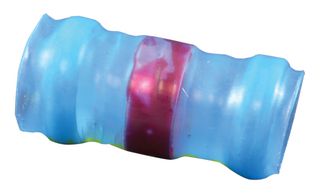

The S01-05-R is a SolderSleeve™ Shield Terminator designed to make an environment-resistant shield wire-to-wire termination on cable. Transparent, heat-shrinkable insulation sleeve constructed of radiation cross-linked polyvinylidene fluoride. S01 series without ground lead meets the performance requirements of SAE-AS83519 (MIL-S-83519/1). The M83519 (S01) series terminator contains a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. This color change gives both manufacturing and Quality Control an aid in the inspection of the completed termination.

• Immersion-resistant
• Heat-shrinkable solder wire termination
• Transparent insulation sleeve provides encapsulation, inspectability, strain relief and insulation
• Preformed fluxed solder provides a controlled soldering process
• One-piece design offers easy installation and lower installation cost
• Makes wire and cable termination easy and faster than conventional hand soldering or crimping

Applications

Industrial, Defence, Military & Aerospace

Remarques

TE Quality Alert (26-004): Non-qualified mil-spec products currently on stop-shipment, that contain flux which does not meet ROL1 classification requirement when tested to ANSI J-STD-004 (AS83519/1, AS83519/2, AS83519/3). Flux has been reclassified as ROM1 in accordance with ANSI J-STD-004D specs.
