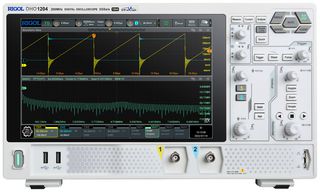

DHO1204

DHO1204 is a DHO1000 series, 200MHz bandwidth digital oscilloscope that is designed to meet the designing, debugging, and testing requirements of the mainstream oscilloscope market. Adopting the brand-new chipset "Centaurus" developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 100Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you.

• 4 analog channels and 1 EXT channel digital oscilloscope
• Rise time ≤1.75 ns, up to 2GSa/s real-time sample rate
• Vertical sensitivity range from 500μV/div to 10V/div
• 10.1'' 1280*800 HD touch display
• User-friendly Flex Knobs, bringing smoother interaction
• Standard photoelectric encoder operating knobs, effectively prolonging its service life
• Standard USB device & host, LAN, and HDMI interfaces
• Power voltage range from 100 to 240VAC
• Operating temperature range from 0℃ to +50℃
• Dimension is 14.1" (W) × 8.45" (H) × 4.75" (D)

Contenu

Digital oscilloscope, Power cord (based on destination country), USB cable, 4 x passive HighZ probes (350MHz) standard.
