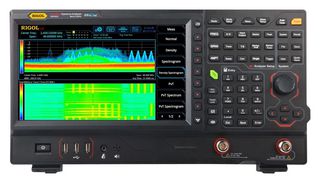

RSA5065

RSA5065 is a RSA5000 series real-time spectrum analyzer. RSA5000 series real-time spectrum analyzer combines the power of a high-performance conventional spectrum analyzer with superior real-time performance, unmatched in this product category. RSA5000 series analyzers provide a resolution bandwidth (RBW) down to 1Hz, a noise floor as low as -165dBm/Hz and a full span sweep as fast as 1ms. In addition, the analyzer features up to 40MHz of real-time bandwidth (optional), a minimum probability of intercept (POI) of 7.45µs, 7-rich visualization modes and powerful triggering capability. The RSA5000 series is a complete analysis package for engineers developing and integrating today's wireless technologies utilizing complex and dynamic modulation schemes.

• Frequency range from 9kHz to 6.5GHz
• Phase noise: <lt/>-108dBc/Hz (typical), level measurement uncertainty: <lt/>0.8dB
• Built-in Linux OS reliable and stable interface, built-in quad-core processor high processing speed
• Multiple measurement modes, multiple trigger modes and trigger masks
• Various advanced measurement functions, vector network analyzer application
• Density, spectrogram, and other display modes
• 10.1'' capacitive multi-touch screen, supporting touch gestures
• USB, LAN, HDMI and other communication and display interfaces
• Ultra-real technology
• Dimension is 16.14'' × 8.82'' × 5.32''

Contenu

Real-time spectrum analyzer, Power cord, Quick guide(hard copy).
