LG16-0431D
Flow Meter, Flowmeter, 15 bar, 4 V

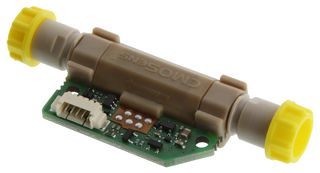

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantSENSIRION
Réf. FabricantLG16-0431D
Code Commande51AH9823
Gamme de produitLG16 Series
Votre numéro de pièce
14 En Stock
Vous en voulez davantage ?
expédition le jour même
Commande avant 18h avec expédition standard
| Quantité | Prix |
|---|---|
| 1+ | 1 067,080 $ |
| 5+ | 1 016,440 $ |
| 10+ | 997,550 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
1 067,08 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantSENSIRION
Réf. FabricantLG16-0431D
Code Commande51AH9823
Gamme de produitLG16 Series
Fiche technique
Sensor TypeFlowmeter
Flow Rate Min-
Flow Rate Max-
Operating Pressure Min-
Operating Pressure Max15bar
Supply Voltage Min4V
Supply Voltage Max12V
Accuracy± 0.15%
Media TypeLiquid
Process Connection Size-
Process Connection Type-
Pipe Size-
Sensor MountingScrew Mount
Operating Temperature Min10°C
Operating Temperature Max50°C
Product RangeLG16 Series
SVHCNo SVHC (10-Jun-2022)
Aperçu du produit
LG16-0431D is a compact liquid flow meter for OEM applications. It enables fast, media separated measurements of very low liquid flow rates below 5000µl/min. This product line is especially suited for OEM volume applications requiring small sized components with high performance at low cost. Excellent chemical resistance and bio-compatibility are ensured: The flow path of the LG16 liquid flow sensor is formed by a straight-through glass capillary and end fittings. There are no obstructions in the flow path.
- High reliability and long-term stability
- Industry-proven technology with a track record of more than 15 year
- Designed for mass production, optimized for low cost
- Low signal noise, quartz glass (fused silica) internal sensor tube material
- PEEK fitting material, 5µl total internal volume
- 1mbar pressure drop (at full scale flow rate, H2O, 23°C)
- 7mbar pressure drop (at full scale flow rate, IPA, 23°C)
- Largest dimension is 2.08 x 0.86 x 0.35inch
- 30bar maximum recommended operating pressure
- 80bar burst pressure
Spécifications techniques
Sensor Type
Flowmeter
Flow Rate Max
-
Operating Pressure Max
15bar
Supply Voltage Max
12V
Media Type
Liquid
Process Connection Type
-
Sensor Mounting
Screw Mount
Operating Temperature Max
50°C
SVHC
No SVHC (10-Jun-2022)
Flow Rate Min
-
Operating Pressure Min
-
Supply Voltage Min
4V
Accuracy
± 0.15%
Process Connection Size
-
Pipe Size
-
Operating Temperature Min
10°C
Product Range
LG16 Series
Documents techniques (4)
Produits associés
1 produit trouvé
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (10-Jun-2022)
