STEVAL-ISA175V1
EVAL BOARD, FLYBACK CONV, SMART METER
| Fabricant | STMICROELECTRONICS |
|---|---|
| Réf. Fabricant | STEVAL-ISA175V1Copie |
| Délai d’approvisionnement standard du fabricant | 20 semaines |
| Code Commande | 97Y9544 |
| Votre numéro de pièce | |
| Fiche technique |
| Quantité | Prix |
|---|---|
| 1+ | 70,340 $ |
Informations produit
| Fabricant | STMICROELECTRONICS |
|---|---|
| Réf. Fabricant | STEVAL-ISA175V1Copie |
| Délai d’approvisionnement standard du fabricant | 20 semaines |
| Code Commande | 97Y9544 |
| Fiche technique | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | VIPER26 |
| Kit Application Type | Power Management |
| Application Sub Type | Flyback Converter |
| Kit Contents | Eval Board VIPER26 |
| Product Range | - |
| SVHC | To Be Advised |
Aperçu du produit

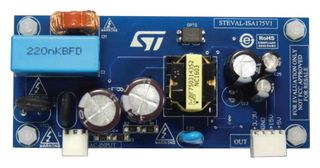

STEVAL-ISA175V1 is an evaluation board that implements a three output isolated flyback specifically designed to supply the STCOMET smart meter and powerline communication system. The board is developed using the VIPER26HD offline high-voltage converter by STMicroelectronics. The device features an 800V avalanche-rugged power section, PWM operation at 115kHz with frequency jittering for lower EMI, current limiting with adjustable set point, on-board soft-start, safe auto-restart after a fault condition and low standby power. The board can be used in a stand-alone configuration or with the dedicated STCOMET development kit and the PCB layout is specifically designed to fit inside a real meter.
- Triple output voltage: 15V at 0.55Arms (0.7A peak), 3.3V at 200 mA and 5V at 100mA
- Extended AC mains input voltage range: 90V AC to 440V AC
- Meets STCOMET smart meter and PLC system specs
- EMC with EN55022, EN61000, EN61000-4-4, EN61000-4-5, EN61000-4-6
Spécifications techniques
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Eval Board VIPER26 |
| SVHC | To Be Advised |
| Silicon Core Number | VIPER26 |
|---|---|
| Application Sub Type | Flyback Converter |
| Product Range | - |
Documents techniques (1)
Produits associés
4 produit(s) trouvé(s)
Législation et Questions environnementales
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Oui RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | To Be Advised |
| Télécharger le certificat de conformité du produit | Certificat de conformité du produit |
