STEVAL-ISA196V1
EVAL BOARD, FLYBACK CONVERTER

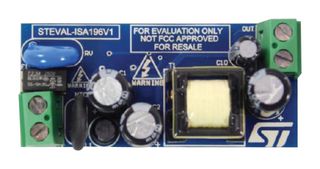

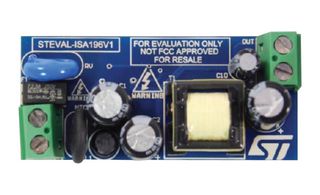

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
| Fabricant | STMICROELECTRONICS |
|---|---|
| Réf. Fabricant | STEVAL-ISA196V1Copie |
| Délai d’approvisionnement standard du fabricant | 20 semaines |
| Code Commande | 84AC2858 |
| Votre numéro de pièce | |
| Fiche technique |
4 En Stock
| Quantité | Prix |
|---|---|
| 1+ | 68,880 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
68,88 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
| Fabricant | STMICROELECTRONICS |
|---|---|
| Réf. Fabricant | STEVAL-ISA196V1Copie |
| Délai d’approvisionnement standard du fabricant | 20 semaines |
| Code Commande | 84AC2858 |
| Fiche technique | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | VIPer114LS |
| Kit Application Type | Power Management |
| Application Sub Type | Flyback Converter |
| Kit Contents | Eval Board VIPerPlus - VIPer114LS |
| Product Range | - |
| SVHC | To Be Advised |
Aperçu du produit
STEVAL-ISA196V1 is an evaluation board that implements a fly back converter (5V/1.2A) wide range mains developed for general purpose applications. The core of the application is VIPer11, a new off-line high voltage converter from the VIPerPlus family. The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control. The main characteristics of the evaluation board are its single layer, small size and minimal BOM, high efficiency and low standby consumption.
- Universal AC main input voltage range from 85V AC to 265V AC
- 6W rated output power
- No load input power at 230V AC is less than 10mW
- Active mode efficiency greater than 78%
Spécifications techniques
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Eval Board VIPerPlus - VIPer114LS |
| SVHC | To Be Advised |
| Silicon Core Number | VIPer114LS |
|---|---|
| Application Sub Type | Flyback Converter |
| Product Range | - |
Documents techniques (2)
Législation et Questions environnementales
| US ECCN: | Unknown |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Oui RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | To Be Advised |
