| Fabricant | TT ELECTRONICS / OPTEK TECHNOLOGY |
|---|---|
| Réf. Fabricant | OP950Copie |
| Délai d’approvisionnement standard du fabricant | 12 semaines |
| Code Commande | 91F1840 |
| Votre numéro de pièce | |
| Fiche technique |
1 000 En Stock
Vous en voulez davantage ?
Livraison standard gratuite
pour les commandes de plus de 200$
| Quantité | Prix |
|---|---|
| 1+ | 0,922 $ |
| 10+ | 0,898 $ |
| 100+ | 0,874 $ |
| 500+ | 0,860 $ |
| 1000+ | 0,847 $ |
| 2500+ | 0,833 $ |
| 5000+ | 0,819 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
0,92 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
| Fabricant | TT ELECTRONICS / OPTEK TECHNOLOGY |
|---|---|
| Réf. Fabricant | OP950Copie |
| Délai d’approvisionnement standard du fabricant | 12 semaines |
| Code Commande | 91F1840 |
| Fiche technique | |
| No. of Pins | 2Pins |
| Diode Case Style | Radial Leaded |
| Wavelength of Peak Sensitivity | 935nm |
| Angle of Half Sensitivity ± | - |
| Dark Current | 1000pA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 100°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | - |
| SVHC | No SVHC (27-Jun-2024) |
Aperçu du produit

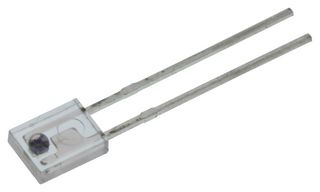

Each OP950 device consists of a PIN silicon photodiode molded in an epoxy packge that allows spectral response from visible to infrared light wavelengths. The side-looking package is designed for easy PCBoard mounting and space-limited applications. The OP950 has a 95° wide receiving angle that provides relatively even reception over a large area and is mechanically and spectrally matched to OPTEK’s GaAs and GaAiAs series of infrared emiƫng diodes.
- Epoxy package
- Linear response vs. irradiance
- Fast switching time
- Choice of wide or extra wide receiving angle
- Side-looker package
- Small package style ideal for space-limited applications
Applications
Industrial Automation Control, Safety
Spécifications techniques
| No. of Pins | 2Pins |
|---|---|
| Wavelength of Peak Sensitivity | 935nm |
| Dark Current | 1000pA |
| Operating Temperature Max | 100°C |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (27-Jun-2024) |
| Diode Case Style | Radial Leaded |
|---|---|
| Angle of Half Sensitivity ± | - |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | - |
Documents techniques (3)
Législation et Questions environnementales
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Oui RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | No SVHC (27-Jun-2024) |
| Télécharger le certificat de conformité du produit | Certificat de conformité du produit |
