Imprimer la page

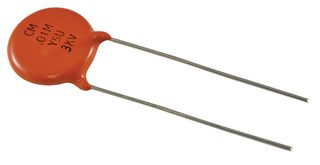

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantVISHAY
Réf. Fabricant564R30GAS10
Code Commande40K5833
Gamme de produit564R Series
Fiche technique
11 742 En Stock
Vous en voulez davantage ?
expédition le jour même
Commande avant 21h avec expédition standard
Quantité | Prix |
---|---|
1+ | 3,010 $ |
10+ | 2,540 $ |
25+ | 2,540 $ |
50+ | 2,540 $ |
100+ | 2,210 $ |
500+ | 2,160 $ |
1000+ | 2,050 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
3,01 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantVISHAY
Réf. Fabricant564R30GAS10
Code Commande40K5833
Gamme de produit564R Series
Fiche technique
Capacitance0.01µF
Voltage(DC)3kV
Capacitance Tolerance± 20%
Dielectric CharacteristicY5U
Lead Spacing9.5mm
Capacitor TerminalsRadial Leaded
Product Range564R Series
Operating Temperature Min-25°C
Operating Temperature Max105°C
SVHCNo SVHC (07-Nov-2024)
Aperçu du produit
The 564R30GAS10 is a radial leaded lower voltage ceramic single-layer Disc Capacitor for DC and pulse applications. The 564R series consist of a ceramic disc of which both sides are silver plating. Connection leads are made of tinned copper having diameter of 0.032 inch. The capacitor may be supplied with radial kinked having lead spacing of 0.25 inch. The standard tolerances are 10% or 20%. Coating is made of resin coating or flame-retardant epoxy resin in accordance with UL94V-0.
- Low losses
- High stability
- High capacitance in small sizes
Spécifications techniques
Capacitance
0.01µF
Capacitance Tolerance
± 20%
Lead Spacing
9.5mm
Product Range
564R Series
Operating Temperature Max
105°C
Voltage(DC)
3kV
Dielectric Characteristic
Y5U
Capacitor Terminals
Radial Leaded
Operating Temperature Min
-25°C
SVHC
No SVHC (07-Nov-2024)
Documents techniques (2)
Produits associés
1 produit trouvé
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (07-Nov-2024)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
Traçabilité des produits
