CSC07A011M00GEK.
Fixed Network Resistor, 1 Mohm, Bussed, 6 Resistors, SIP, PC Pin, ± 2%

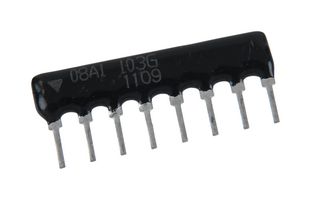

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantVISHAY
Réf. FabricantCSC07A011M00GEK.
Code Commande60AC8478
Gamme de produitCSC Series
Fiche technique
2 000 En Stock
Vous en voulez davantage ?
Livraison dans 2-4 jours ouvrables
Vous en voulez davantage ?
Informations produit
FabricantVISHAY
Réf. FabricantCSC07A011M00GEK.
Code Commande60AC8478
Gamme de produitCSC Series
Fiche technique
Resistance1Mohm
Product RangeCSC Series
Network Circuit TypeBussed
Resistor Case / PackageSIP
No. of Resistors6Resistors
Resistor TerminalsPC Pin
Voltage Rating100VDC
Power Rating per Resistor200mW
Resistance Tolerance± 2%
Temperature Coefficient± 100ppm/°C
Resistor TypeNetwork
Resistor TechnologyThick Film
Resistor MountingThrough Hole
Terminal Pitch2.54mm
Power Rating870mW
Product Length17.53mm
Product Width2.49mm
Product Height4.95mm
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
SVHCTo Be Advised
Spécifications techniques
Resistance
1Mohm
Network Circuit Type
Bussed
No. of Resistors
6Resistors
Voltage Rating
100VDC
Resistance Tolerance
± 2%
Resistor Type
Network
Resistor Mounting
Through Hole
Power Rating
870mW
Product Width
2.49mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
CSC Series
Resistor Case / Package
SIP
Resistor Terminals
PC Pin
Power Rating per Resistor
200mW
Temperature Coefficient
± 100ppm/°C
Resistor Technology
Thick Film
Terminal Pitch
2.54mm
Product Length
17.53mm
Product Height
4.95mm
Operating Temperature Max
125°C
SVHC
To Be Advised
Documents techniques (2)
Législation et Questions environnementales
US ECCN:Unknown
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :To Be Advised
