TLCR5800
LED, Ultrabright, Red, Through Hole, T-1 3/4 (5mm), 50 mA, 2.1 V, 616 nm
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 0,677 $ |
| 10+ | 0,473 $ |
| 25+ | 0,430 $ |
| 50+ | 0,388 $ |
| 100+ | 0,345 $ |
| 500+ | 0,288 $ |
| 1000+ | 0,269 $ |
| 2500+ | 0,260 $ |
Informations produit
Aperçu du produit

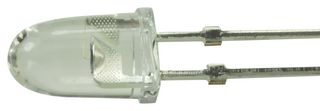

The TLCR5800 is an Ultra-bright LED with untinted non-diffused lens, housing in Ø5mm untinted non-diffused package. It is suitable for high end applications where supreme luminous intensity required. This lamp with clear untinted plastic case utilize the highly developed ultra-bright AlInGaP (AS). The lens and the viewing angle is optimized to achieve best performance of light output and visibility. It is suitable for outdoor LED panels, central high mounted stop lights (CHMSL) for motor vehicles, replaces incandescent lamps, traffic signals and light guide design.
- AllnGaP on GaAs technology
- High luminous intensity
- Up to 2kV ESD-withstand voltage
- 5V Reverse voltage
- 135mW Power dissipation
- Halogen-free, green product
Applications
Lighting, Sensing & Instrumentation, Signalling, Automotive
Spécifications techniques
Red
T-1 3/4 (5mm)
50mA
616nm
4°
-
-
Through Hole
T-1 3/4 (5mm)
2.1V
35cd
Round
-
No SVHC (07-Nov-2024)
Documents techniques (2)
Produits associés
8 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
