9 In Stock
16 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $31.460 |
| 5+ | $28.940 |
| 10+ | $26.730 |
| 25+ | $24.220 |
| 50+ | $22.340 |
Price for:Each
Minimum: 1
Multiple: 1
$31.46
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerIDEC
Manufacturer Part NoAL6M-M24P-G
Newark Part No.15C0241
Product RangeA6 Series
Technical Datasheet
Product RangeA6 Series
Panel Cutout Diameter16mm
Contact Current Max1A
Contact ConfigurationDPDT
Switch OperationMomentary
Contact Voltage AC Nom240V
Pushbutton Actuator StyleRound
Contact Voltage DC Nom120V
Actuator / Cap ColourGreen
Contact Current AC Max1A
Contact Voltage VAC110V
Contact Current DC Max1A
Contact Voltage VDC24V
IP RatingIP40, IP65
Switch MountingPanel Mount
Switch TerminalsQuick Connect, Solder
Illumination ColorGreen
Panel Cutout (H x W)-
SVHCNo SVHC (16-Jul-2019)
Product Overview

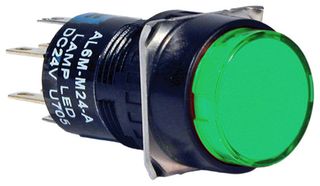

The AL6M-M24P-G is a double-pole double-throw (DPDT) 2NO-2NC LED illuminated Pushbutton Switch with gold-clad silver snap action contacts. This A6 series pushbutton switch features green round head, standard lens and extended momentary operator.
- Compact design saves space
- 50mΩ (initial value) Maximum contact resistance
- 100MΩ (500VDC megger) Minimum insulation resistance
Applications
Industrial
Technical Specifications
Product Range
A6 Series
Contact Current Max
1A
Switch Operation
Momentary
Pushbutton Actuator Style
Round
Actuator / Cap Colour
Green
Contact Voltage VAC
110V
Contact Voltage VDC
24V
Switch Mounting
Panel Mount
Illumination Color
Green
SVHC
No SVHC (16-Jul-2019)
Panel Cutout Diameter
16mm
Contact Configuration
DPDT
Contact Voltage AC Nom
240V
Contact Voltage DC Nom
120V
Contact Current AC Max
1A
Contact Current DC Max
1A
IP Rating
IP40, IP65
Switch Terminals
Quick Connect, Solder
Panel Cutout (H x W)
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
