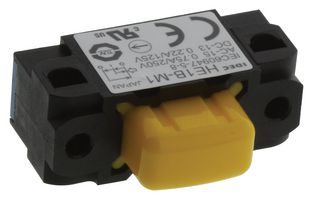

Pushbutton Switch, HE1B Series, SPST-NO, Off-On-Off, Rectangular Raised, Yellow
Image is for illustrative purposes only. Please refer to product description.
ManufacturerIDEC
Manufacturer Part NoHE1B-M1
Newark Part No.84C2718
Product RangeHE1B Series
Technical Datasheet
11 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $25.620 |
| 5+ | $23.580 |
| 10+ | $21.790 |
| 25+ | $19.730 |
Price for:Each
Minimum: 1
Multiple: 1
$25.62
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerIDEC
Manufacturer Part NoHE1B-M1
Newark Part No.84C2718
Product RangeHE1B Series
Technical Datasheet
Product RangeHE1B Series
Pushbutton Switch TypeEnabling Switch
Panel Cutout Diameter-
Contact ConfigurationSPST-NO
Switch OperationOff-On-Off
Contact Voltage DC Nom125V
Contact Current Max5A
Pushbutton Actuator StyleRectangular Raised
Actuator / Cap ColourYellow
Contact Current AC Max3A
Contact Voltage VAC125V
Contact Current DC Max2A
Contact Voltage VDC30V
IP RatingIP40
Switch MountingPanel Mount
Switch TerminalsScrew
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (16-Jul-2019)
Product Overview
The HE1B-M1 is a 3-position single-pole single-throw (SPST) Enabling Switch with M3 screw side mounting. The switch with ergonomically designed OFF-ON-OFF, direct opening action mechanism for shifting from position-2 (ON) to position-3 (OFF), switch does not turn ON while being released from position-3 (OFF when pressed) to position-1 (OFF when released). Ideal for installing in teach pendants and other enabling devices and to avoid hazards. Meets IEC60204-1, EN 60947-5-1/IEC 60947-5-1 standards.
- Reliable performance in compact and lightweight
- Solder terminal
- Fast acting type fuse for short-circuit protection
- 0.5 to 0.8Nm Tighting torque
- -25 to 60°C Operating temperature range
Applications
Industrial
Technical Specifications
Product Range
HE1B Series
Panel Cutout Diameter
-
Switch Operation
Off-On-Off
Contact Current Max
5A
Actuator / Cap Colour
Yellow
Contact Voltage VAC
125V
Contact Voltage VDC
30V
Switch Mounting
Panel Mount
Illumination Color
Non Illuminated
SVHC
No SVHC (16-Jul-2019)
Pushbutton Switch Type
Enabling Switch
Contact Configuration
SPST-NO
Contact Voltage DC Nom
125V
Pushbutton Actuator Style
Rectangular Raised
Contact Current AC Max
3A
Contact Current DC Max
2A
IP Rating
IP40
Switch Terminals
Screw
Panel Cutout (H x W)
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
Download Product Compliance Certificate
Product Compliance Certificate
