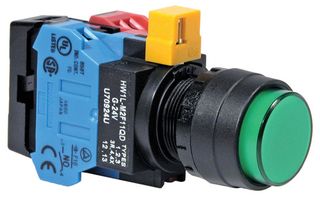

HW1L-M2F10QD-G-24V

The HW1L-M2F10QD-G-24V is a single-pole single-throw (SPST) Pushbutton Switch with Ø22mm green extended round momentary operator and 1NO self-cleaning silver contacts. This illuminated full voltage pushbutton features plastic bezel. The IDEC's HW series switch is "The best engineered switch in the world" for a reason. Carrying the CE mark, UL, CSA, CCC (Chinese) and TUV approvals, this switch is designed for use in almost any part of the world. The switch is incorporated mechanically keyed safety locking lever, ensuring correct installation and maintaining safety in high-vibration applications.

• Tamperproof construction
• Easy to assemble
• ≤50mΩ maximum (initial value) Contact resistance
• Class 0 conforming to IEC60536 electric shock protection
• -25 to 50°C Operating temperature range

Applications

Industrial
