ROX9J7K5
Through Hole Resistor, 7.5 kohm, ROX Series, 9 W, ± 5%, Axial Leaded, 750 V

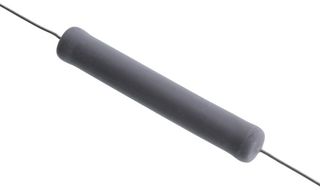

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - NEOHM
Manufacturer Part NoROX9J7K5Copy
Manufacturer Standard Lead Time17 weeks
Newark Part No.97AC3864
Product RangeROX Series
Also Known As5-2176416-3
Your Part Number
1,789 In Stock
Need more?
FREE Standard Delivery
on orders over $200
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $2.570 |
| 10+ | $2.250 |
| 25+ | $1.860 |
| 50+ | $1.670 |
| 100+ | $1.540 |
| 500+ | $1.450 |
| 1000+ | $1.360 |
| 2500+ | $1.310 |
Price for:Each
Minimum: 1
Multiple: 1
$2.57
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - NEOHM
Manufacturer Part NoROX9J7K5Copy
Manufacturer Standard Lead Time17 weeks
Newark Part No.97AC3864
Product RangeROX Series
Also Known As5-2176416-3
Technical Datasheet
Resistance7.5kohm
Product RangeROX Series
Power Rating9W
Resistance Tolerance± 5%
Resistor Case / PackageAxial Leaded
Voltage Rating750V
Resistor TechnologyMetal Oxide
Temperature Coefficient± 350ppm/°C
Resistor TypeFlame Proof
Product Diameter8.5mm
Product Length54mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max155°C
Qualification-
SVHCNo SVHC (04-Feb-2026)
Alternatives for ROX9J7K5
1 Product Found
Technical Specifications
Resistance
7.5kohm
Power Rating
9W
Resistor Case / Package
Axial Leaded
Resistor Technology
Metal Oxide
Resistor Type
Flame Proof
Product Length
54mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
ROX Series
Resistance Tolerance
± 5%
Voltage Rating
750V
Temperature Coefficient
± 350ppm/°C
Product Diameter
8.5mm
Product Width
-
Operating Temperature Max
155°C
SVHC
No SVHC (04-Feb-2026)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
