CM400DU-5F
IGBT Module, Dual [Half Bridge], 400 A, 1.7 V, 890 W, 150 °C, Module
Image is for illustrative purposes only. Please refer to product description.

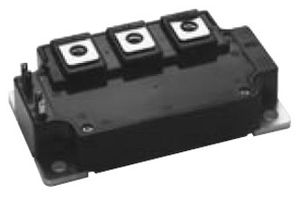

![MITSUBISHI ELECTRIC CM400DU-5F IGBT Module, Dual [Half Bridge], 400 A, 1.7 V, 890 W, 150 °C, Module](https://canada.newark.com/productimages/standard/en_US/4613652.jpg)
ManufacturerMITSUBISHI ELECTRIC
Manufacturer Part NoCM400DU-5FCopy
Newark Part No.31C0203
Product RangeF Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
Product Information
ManufacturerMITSUBISHI ELECTRIC
Manufacturer Part NoCM400DU-5FCopy
Newark Part No.31C0203
Product RangeF Series
Technical Datasheet
Transistor PolarityN Channel
IGBT ConfigurationDual [Half Bridge]
Continuous Collector Current400A
DC Collector Current400A
Collector Emitter Saturation Voltage Vce(on)250V
Collector Emitter Saturation Voltage1.7V
Power Dissipation890W
Power Dissipation Pd890W
Collector Emitter Voltage V(br)ceo250V
Operating Temperature Max150°C
Junction Temperature, Tj Max150°C
Transistor Case StyleModule
No. of Pins7Pins
IGBT TerminationTab
Collector Emitter Voltage Max250V
IGBT TechnologyIGBT 5 [Trench Gate]
Transistor MountingPanel
Product RangeF Series
SVHCTo Be Advised
Technical Specifications
Transistor Polarity
N Channel
Continuous Collector Current
400A
Collector Emitter Saturation Voltage Vce(on)
250V
Power Dissipation
890W
Collector Emitter Voltage V(br)ceo
250V
Junction Temperature, Tj Max
150°C
No. of Pins
7Pins
Collector Emitter Voltage Max
250V
Transistor Mounting
Panel
SVHC
To Be Advised
IGBT Configuration
Dual [Half Bridge]
DC Collector Current
400A
Collector Emitter Saturation Voltage
1.7V
Power Dissipation Pd
890W
Operating Temperature Max
150°C
Transistor Case Style
Module
IGBT Termination
Tab
IGBT Technology
IGBT 5 [Trench Gate]
Product Range
F Series
