UPW25B50RV
Through Hole Resistor, 50 ohm, UPW Series, 250 mW, ± 0.1%, Axial Leaded, 300 V

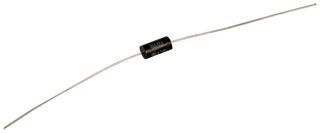

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - NEOHM
Manufacturer Part NoUPW25B50RVCopy
Manufacturer Standard Lead Time38 weeks
Newark Part No.20R9170
Product RangeUPW Series
Also Known As1624322-7, UPW25 0.1% 5PPM 50R
Your Part Number
86 In Stock
Need more?
FREE Standard Delivery
on orders over $200
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $34.680 |
| 25+ | $21.740 |
| 100+ | $19.920 |
| 250+ | $18.330 |
| 500+ | $16.910 |
| 1000+ | $16.580 |
| 2500+ | $16.240 |
Price for:Each
Minimum: 1
Multiple: 1
$34.68
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - NEOHM
Manufacturer Part NoUPW25B50RVCopy
Manufacturer Standard Lead Time38 weeks
Newark Part No.20R9170
Product RangeUPW Series
Also Known As1624322-7, UPW25 0.1% 5PPM 50R
Technical Datasheet
Resistance50ohm
Product RangeUPW Series
Power Rating250mW
Resistance Tolerance± 0.1%
Resistor Case / PackageAxial Leaded
Voltage Rating300V
Resistor TechnologyWirewound
Temperature Coefficient± 5ppm/°C
Resistor TypeUltra Precision
Product Diameter4.75mm
Product Length9.53mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max145°C
Qualification-
SVHCNo SVHC (25-Jun-2025)
Alternatives for UPW25B50RV
1 Product Found
Technical Specifications
Resistance
50ohm
Power Rating
250mW
Resistor Case / Package
Axial Leaded
Resistor Technology
Wirewound
Resistor Type
Ultra Precision
Product Length
9.53mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
UPW Series
Resistance Tolerance
± 0.1%
Voltage Rating
300V
Temperature Coefficient
± 5ppm/°C
Product Diameter
4.75mm
Product Width
-
Operating Temperature Max
145°C
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
