                      OM13054UL

                      Debug Adaptor, LPC-Link2 Stand Alone Debug Probe, Extensible, Compatible with LPCXpresso-IDE

                      NXP OM13054UL

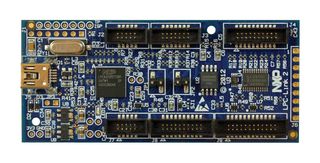

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerNXP
                      Manufacturer Part NoOM13054UL
                      Newark Part No.13AC2970
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Available

                      Product Information

                      ManufacturerNXP
                      Manufacturer Part NoOM13054UL
                      Newark Part No.13AC2970
                      Technical Datasheet

                      Data Sheet

                      IC Product TypeDebugger Probe
                      Silicon Family NameLPC1100
                      Core ArchitectureARM
                      Core Sub-ArchitectureCortex-M0, Cortex-M4
                      Kit ContentsLPCXpresso LPC-Link2 Stand Alone Debug Adapter Board
                      FeaturesCompatible LPCXpresso/MPCXpresso-IDE & Tools, Support Segger J-Link and/or CMSIS-DAP Protocols
                      Product Range-
                      SVHCNo SVHC (17-Jan-2022)

                      Product Overview

                      The OM13054, 598 is a LPC-Link2 standalone debug adapter. It can be configured to support various development tools and IDEs by downloadable firmware images. This standalone debug adapter includes a standard 10 pin JTAG/SWD connector, a 20 pin JTAG/SWD/ETM connector, analogue, digital and serial expansion headers, making it a highly extensible platform. The LPC-Link 2 firmware in combination with the LPCXpresso IDE supports Cortex-Mx cores in the LPC family, but not older ARM7/ARM9 cores.

                      • Compatible with LPCXpresso-IDE via the Redlink or CMSIS-DAP interface
                      • Compatible with tools/IDEs supporting Segger J-Link via downloadable firmware image
                      • Compatible with tools/IDEs supporting CMSIS-DAP by ARM via downloadable firmware image

                      Applications

                      Embedded Design & Development

                      Technical Specifications

                      IC Product Type

                      Debugger Probe

                      Core Architecture

                      ARM

                      Kit Contents

                      LPCXpresso LPC-Link2 Stand Alone Debug Adapter Board

                      Product Range

                      -

                      Silicon Family Name

                      LPC1100

                      Core Sub-Architecture

                      Cortex-M0, Cortex-M4

                      Features

                      Compatible LPCXpresso/MPCXpresso-IDE & Tools, Support Segger J-Link and/or CMSIS-DAP Protocols

                      SVHC

                      No SVHC (17-Jan-2022)

                      Technical Docs (2)

                      element14 Technical Page EN

                      Technical Data Sheet EN

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Not applicable
                      RoHS Phthalates Compliant:Not applicable
                      SVHC:No SVHC (17-Jan-2022)
