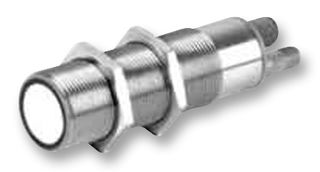

UC 500-30GM-IUR2-V15

The UC 500-30GM-IUR2-V15 is an Ultrasonic Sensor characterized by its reliability and outstanding versatility. The device can be used to solve even the most complex tasks involving object detection or level measurement with millimeter precision, because their measuring method works reliably under almost all conditions. The device is extremely robust, making them suitable for even the toughest conditions. The sensor surface cleans itself through vibration and that is not the only reason why the sensor is insensitive to dirt. The physical principle-the propagation of sound-works, with a few exceptions, in practically any environment. The device has proven their reliability and endurance in virtually all industrial sectors. the device features parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000.

• 30 to 500mm Sensing range
• 50 to 500mm Adjustment range
• 0 to 30mm Dead band
• Approximately 380kHz transducer frequency
• 21ms Minimum response delay
• 1 Current output 4 to 20mA, 1 voltage output 0 to 10V
• Synchronization options
• Adjustable acoustic power and sensitivity
• Temperature compensation

Applications

Sensing & Instrumentation, Agriculture, Test & Measurement
