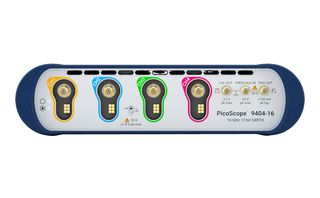

PICOSCOPE 9404-16

Picoscope 9404-16 is a PicoScope® 9400 Series SXRTO sampler-extended real-time oscilloscope has four high-bandwidth 50 ohm input channels with market-leading ADC, timing and display resolutions for accurately measuring and visualizing high-speed analogue and data signals. They are ideal for capturing pulse and step transitions down to 22 ps, impulse down to 45 ps, and clocks and data eyes to 11 Gb/s (with optional 5 or 8 Gb/s clock recovery).

• 16GHz bandwidth
• 2.5TS/s (0.4ps resolution) random sampling
• 12-bit 500MS/s ADCs, ±800mV full-scale input range
• Intuitive and configurable touch-compatible Windows user interface
• Comprehensive built-in measurements, zooms, data masks, histograms
• 10mV/div to 250mV/div digital gain ranges
• Up to 250kS trace length, shared between channels
• Optional clock recovery trigger up to 8Gb/s
• Optional recovered clock and data outputs

Contents

PicoScope 9404-16 sampler-extended real-time oscilloscope (SXRTO), PicoSample 4 software supplied on USB stick, Free software updates from www.picotech.com, Quick start guide, 12 V power supply, IEC inlet, 3 x localized IEC mains leads, USB cable 1.8m, PicoWrench N / SMA / PC3.5 / K combination wrench, Storage / carry case, LAN cable 1m.
