SKM300GB12E4

IGBT Module, Half Bridge, 422 A, 1.85 V, 125 °C, Module

SKM300GB12E4 - IGBT Module, Half Bridge, 422 A, 1.85 V, 125 °C, Module
SKM300GB12E4 - IGBT Module, Half Bridge, 422 A, 1.85 V, 125 °C, Module

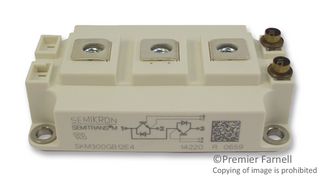

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
SEMIKRON SEMIKRON
Manufacturer Part No:
SKM300GB12E4
Newark Part No.:
77R2572
Technical Datasheet:
SKM300GB12E4   Datasheet
See all Technical Docs

Product Overview

The SKM300GB12E4 is a SEMITRANS® 3 IGBT Module for use with AC inverter drives and UPS. It features insulated copper base plate using DBC technology (Direct Bonded Copper) and increased power cycling capability.
  • Half-bridge switch
  • IGBT4 = 4th generation medium fast Trench IGBT (Infineon)
  • CAL4 = Soft switching 4th generation CAL-diode
  • Integrated gate resistor
  • For higher switching frequencies up to 12kHz
  • UL recognized, file number E63532

Applications

Power Management

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Half Bridge

:
422A

:
1.85V

:
-

:
125°C

:
Module

:
1.2kV

:
IGBT 4 [Trench]

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

0 In stock

Non-Cancelable / Non Returnable

$322.80

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 12 Minimum: 12
Quantity Price Your Price


10+ $322.80
