L712RA
DC Power Connector, Jack, 5 A, 2.5 mm, Through Hole Mount, Through Hole

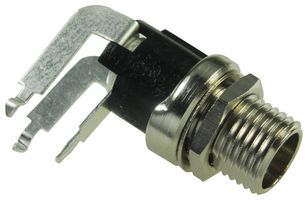

Image is for illustrative purposes only. Please refer to product description.
100 In Stock
| Quantity | Price |
|---|---|
| 1+ | $9.260 |
| 10+ | $7.470 |
| 25+ | $6.870 |
| 50+ | $6.560 |
| 100+ | $6.410 |
Price for:Each
Minimum: 1
Multiple: 1
$9.26
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part NoL712RA
Newark Part No.95B6213
Technical Datasheet
GenderJack
Current Rating5A
Pin Diameter2.5mm
Barrel Length-
Connector MountingThrough Hole Mount
Contact Termination TypeThrough Hole
Barrel Inner Diameter-
Barrel Outer Diameter-
Voltage Rating30V
Product Range-
SVHCLead
Product Overview
The L712RA is a right angle Locking Power Jack for PC mounting. It has moulded plastic housing and a rigid plastic insulator. It is supplied with one number P2439 nickel-plated brass hardware hex nut and one Number P2441 nickel-plated steel flat washer.
- 0.01Ω Maximum contact resistance
- 500VAC Maximum dielectric withstanding voltage
- Made in the USA
Applications
Industrial
Technical Specifications
Gender
Jack
Pin Diameter
2.5mm
Connector Mounting
Through Hole Mount
Barrel Inner Diameter
-
Voltage Rating
30V
SVHC
Lead
Current Rating
5A
Barrel Length
-
Contact Termination Type
Through Hole
Barrel Outer Diameter
-
Product Range
-
Technical Docs (2)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
