Current Probe, Calibrated, BNC Plug, Current Clamp, 50 A, 5 mA, Tektronix Oscilloscopes

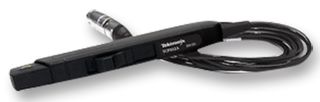

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTEKTRONIX
Manufacturer Part NoTCP305A CAL
Newark Part No.14AC1118
Product RangeTCP300 Series
Technical Datasheet
24 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4,061.180 |
Price for:Each
Minimum: 1
Multiple: 1
$4,061.18
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTEKTRONIX
Manufacturer Part NoTCP305A CAL
Newark Part No.14AC1118
Product RangeTCP300 Series
Technical Datasheet
Meter Side ConnectorBNC Plug
Probe Side ConnectorCurrent Clamp
Current Range Max50A
Current Range Min5mA
For Use WithTektronix Oscilloscopes
Product RangeTCP300 Series
SVHCTo Be Advised
Product Overview
The TCP305A CAL from Tektronix is a AC/DC current measurement system. It is a highly advanced current measurement system for today's current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (w/ TCA-BNC), or TekVPI (with TPA-BNC) interfaces, current measurements and calculations are simple and easy. Development and analysis solutions for designers, installers and service personnel in telecom, data comm, computer and semiconductor power electronics environments.
- Calibrated AC/DC current measurement system
- Bandwidth range from DC to 50MHz, rise time is ≤7ns, DC accuracy is ±3% of reading
- Lowest measurable current is 5mA
- Maximum wire voltage is 150V CAT II, 300V CAT II
- Displayed RMS noise is ≤1.25mA RMS
- Signal delay is 19ns
- Insertion impedance is 0.02ohm at 1MHz, 0.1ohm at 10MHz, 0.35ohm at 50MHz
- Maximum current rating is 50A (DC continuous) (high-current sensitivity)
- Probe size is 20cm x 6cm x 3.2cm, maximum conductor size is 5mm, 1.5m cable length
- Operating temperature range from 0°C to 50°C
Applications
Test & Measurement
Technical Specifications
Meter Side Connector
BNC Plug
Current Range Max
50A
For Use With
Tektronix Oscilloscopes
SVHC
To Be Advised
Probe Side Connector
Current Clamp
Current Range Min
5mA
Product Range
TCP300 Series
