53D222G063HL6
Electrolytic Capacitor, Tubular, 2200 µF, 63 V, ± 10%, PC Pin, 1000 hours @ 105°C, Polar

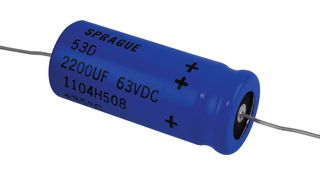

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part No53D222G063HL6
Newark Part No.44F2332
Product Range53D Series
Technical Datasheet
178 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $15.260 |
| 10+ | $15.260 |
| 25+ | $15.260 |
| 50+ | $15.260 |
| 100+ | $15.260 |
Price for:Each
Minimum: 1
Multiple: 1
$15.26
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part No53D222G063HL6
Newark Part No.44F2332
Product Range53D Series
Technical Datasheet
Capacitance2200µF
Voltage(DC)63V
Capacitance Tolerance± 10%
Capacitor TerminalsPC Pin
Lifetime @ Temperature1000 hours @ 105°C
PolarityPolar
Capacitor Case / PackageAxial Leaded
Lead Spacing-
Product Diameter22.5mm
Product Length54.4mm
Product Width-
Product Height-
Product Range53D Series
ESR86ohm
Ripple Current2.21A
Operating Temperature Min-40°C
Operating Temperature Max85°C
Qualification-
SVHCLead
Alternatives for 53D222G063HL6
1 Product Found
Technical Specifications
Capacitance
2200µF
Capacitance Tolerance
± 10%
Lifetime @ Temperature
1000 hours @ 105°C
Capacitor Case / Package
Axial Leaded
Product Diameter
22.5mm
Product Width
-
Product Range
53D Series
Ripple Current
2.21A
Operating Temperature Max
85°C
SVHC
Lead
Voltage(DC)
63V
Capacitor Terminals
PC Pin
Polarity
Polar
Lead Spacing
-
Product Length
54.4mm
Product Height
-
ESR
86ohm
Operating Temperature Min
-40°C
Qualification
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:Lead
