IHLP7575GZER1R0M5A
INDUCTOR, 1UH, SHIELDED, 55A ROHS COMPLIANT: YES

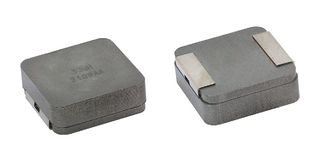

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoIHLP7575GZER1R0M5A
Newark Part No.60AJ3860
Product RangeIHLP-7575GZ-5A Series
Technical Datasheet
41 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $9.080 |
| 10+ | $7.820 |
| 25+ | $7.630 |
| 50+ | $7.320 |
| 100+ | $6.440 |
| 500+ | $6.240 |
| 1000+ | $6.060 |
Price for:Each
Minimum: 1
Multiple: 1
$9.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoIHLP7575GZER1R0M5A
Newark Part No.60AJ3860
Product RangeIHLP-7575GZ-5A Series
Technical Datasheet
Inductance1µH
RMS Current (Irms)55A
Inductor ConstructionShielded
Saturation Current (Isat)81A
Power Inductor Case19.1mm x 19.05mm x 7mm
Product RangeIHLP-7575GZ-5A Series
Inductor Case / Package-
DC Resistance Max0.00126ohm
Inductance Tolerance± 20%
Product Length19.1mm
Product Width19.05mm
Product Height7mm
Technical Specifications
Inductance
1µH
Inductor Construction
Shielded
Power Inductor Case
19.1mm x 19.05mm x 7mm
Inductor Case / Package
-
Inductance Tolerance
± 20%
Product Width
19.05mm
SVHC
No SVHC (07-Nov-2024)
RMS Current (Irms)
55A
Saturation Current (Isat)
81A
Product Range
IHLP-7575GZ-5A Series
DC Resistance Max
0.00126ohm
Product Length
19.1mm
Product Height
7mm
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
