744031002
Power Inductor (SMD), 2.5 µH, 1.45 A, Shielded, 1.25 A, WE-TPC Series

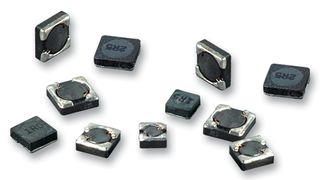

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No744031002
Newark Part No.46T8773
Product RangeWE-TPC Series
Technical Datasheet
1,265 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.290 |
| 10+ | $2.220 |
| 25+ | $2.210 |
| 50+ | $2.090 |
| 100+ | $1.940 |
| 250+ | $1.880 |
| 500+ | $1.680 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$2.29
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No744031002
Newark Part No.46T8773
Product RangeWE-TPC Series
Technical Datasheet
Inductance2.5µH
RMS Current (Irms)1.45A
Inductor ConstructionShielded
Saturation Current (Isat)1.25A
Product RangeWE-TPC Series
Power Inductor Case3.8mm x 3.8mm x 1.65mm
DC Resistance Max0.058ohm
Inductance Tolerance± 30%
Product Length3.8mm
Product Width3.8mm
Product Height1.65mm
SVHCNo SVHC (21-Jan-2025)
Product Overview
Wurth Electronics WE-TPC series are SMD shielded tiny power inductors with a 4 pad design which provides great mechanical strength. Compared to the unshielded types, the WE-TPC series reduces stray field due to the magnetic shielding.
- Extremely flat power inductor
- High current capability
- Magnetically shielded which results in a low leakage field
- Recommended solder profile: Reflow
- Operating temperature: -40°C to +125°C
Technical Specifications
Inductance
2.5µH
Inductor Construction
Shielded
Product Range
WE-TPC Series
DC Resistance Max
0.058ohm
Product Length
3.8mm
Product Height
1.65mm
RMS Current (Irms)
1.45A
Saturation Current (Isat)
1.25A
Power Inductor Case
3.8mm x 3.8mm x 1.65mm
Inductance Tolerance
± 30%
Product Width
3.8mm
SVHC
No SVHC (21-Jan-2025)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
