760308102142

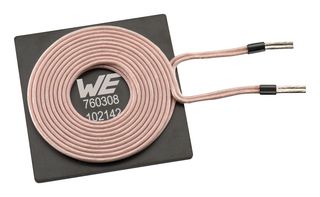

WIRELESS POWER CHARGING COIL, 5.8UH ROHS COMPLIANT: YES
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No760308102142Copy
Newark Part No.94AK5928
Product RangeWE-WPCC Series
Your Part Number
11 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $35.760 |
| 10+ | $34.330 |
| 25+ | $33.750 |
| 50+ | $33.160 |
| 100+ | $32.570 |
| 250+ | $31.990 |
Price for:Each
Minimum: 1
Multiple: 1
$35.76
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No760308102142Copy
Newark Part No.94AK5928
Product RangeWE-WPCC Series
Product RangeWE-WPCC Series
Inductance5.8µH
Inductance Tolerance± 10%
DC Resistance Max0.012ohm
No. of Coils1 Coil
No. of Layers1 Layer
Saturation Current (Isat)30A
Self Resonant Frequency12MHz
AC Current Rating18A
Product Length-
Product Width-
Product Height6.5mm
Inductor MountingBoard Mount
Operating Temperature Min-20°C
Operating Temperature Max105°C
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Product Range
WE-WPCC Series
Inductance Tolerance
± 10%
No. of Coils
1 Coil
Saturation Current (Isat)
30A
AC Current Rating
18A
Product Width
-
Inductor Mounting
Board Mount
Operating Temperature Max
105°C
Inductance
5.8µH
DC Resistance Max
0.012ohm
No. of Layers
1 Layer
Self Resonant Frequency
12MHz
Product Length
-
Product Height
6.5mm
Operating Temperature Min
-20°C
SVHC
No SVHC (04-Feb-2026)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
