POGO-PIN-13.0-1
Contact, Connector, PCB, Test Point, 2.65 mm, Point, 5 A, 13 mm, 1 oz

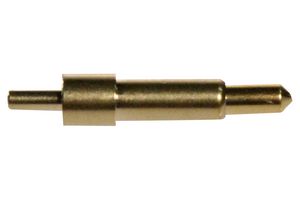

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 4 semaine(s)
Informations produit
FabricantEMULATION TECHNOLOGY
Réf. FabricantPOGO-PIN-13.0-1
Code Commande30K6548
Fiche technique
Connector TypeTest Point
Centerline Spacing2.65mm
Connector Tip StylePoint
Current Rating5A
Overall Length13mm
Spring Force Initial1oz
Spring Force Working Travel3oz
Product Range-
SVHCNo SVHC (17-Dec-2015)
Aperçu du produit
The POGO-PIN-13.0-1 is a 2.54mm pitch ultra mini Pogo Pin Test Probe used in battery chargers or electronic devices like camcorders, cellular phones. Better contact than Nickel-plated strip contacts. Maintains high compliancy and less susceptible to damage. It can be accommodated up to 0.025-inch subsurface battery mating contact.
- Low resistance
- Maintains high compliancy
- Less susceptible to damage
- Longer life than conventional interconnects
Applications
Test & Measurement, Consumer Electronics, Industrial, Computers & Computer Peripherals
Spécifications techniques
Connector Type
Test Point
Connector Tip Style
Point
Overall Length
13mm
Spring Force Working Travel
3oz
SVHC
No SVHC (17-Dec-2015)
Centerline Spacing
2.65mm
Current Rating
5A
Spring Force Initial
1oz
Product Range
-
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :No SVHC (17-Dec-2015)
