74HC4067BQ,118

74HC4067BQ,118 is a 16-channel analog multiplexer/demultiplexer. This single-pole 16-throw analog switch (SP16T) is suitable for use in analog or digital 16:1 multiplexer/demultiplexer applications. The switch features four digital select inputs (S0, S1, S2, and S3), sixteen independent inputs/outputs (Yn), a common input/output (Z), and a digital enable input (active-low E). When active-low E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current-limiting resistors to interface inputs to voltages in excess of VCC. It is used in applications such as analog multiplexing and demultiplexing, digital multiplexing and demultiplexing, and signal gating.

• Wide supply voltage range from 2V to 10V
• CMOS low power dissipation, high noise immunity
• Complies with JEDEC standards: JESD8C (2.7V to 3.6V), JESD7A (2.0V to 6.0V)
• Latch-up performance exceeds 100mA per JESD 78 Class II Level B
• Typical ‘break before make’ built-in
• ON resistance (peak) is 270 ohm max at (-40°C to +125°C, VCC = 4.5V; ISW = 1000μA)
• Supply current is 8μA max at (VCC = 6.0V)
• Propagation delay is 110ns max at (VCC = 2.0V, -40°C to +125°C)
• Turn-off time is 375ns max at (VCC = 2.0V, -40°C to +125°C)

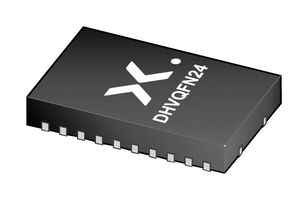

• Operating temperature range from -40°C to +125°C, DHVQFN24 package
