Informations produit
FabricantNXP
Réf. FabricantCLEV6630BM
Code Commande27AC1840
Fiche technique
Kit Application TypeAccess Management
Silicon ManufacturerNXP
Silicon Core NumberCLRC663 plus
Application Sub TypeNFC Frontend Development
Kit ContentsDev Kit CLRC663 plus
Product Range-
SVHCNo SVHC (27-Jun-2024)
Aperçu du produit

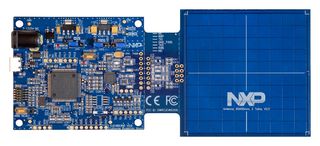

The CLEV6630BM is a flexible and easy to use frontend development kit for CLRC663 plus. It contains a CLEV6630B board fully supported by the NFC Cockpit and the NFC Reader Library with a 65*65 mm2 antenna optimized for EMVCo applications and a 30 x 50mm2 antenna with matching components optimized for Access Management applications. It also includes 3 small antennas matching PCBs for implementation of custom antenna matching circuit, NFC sample cards based on NTAG216 (NFC Forum type 2 tag) and MIFARE DESFire® EV2, and 10 CLRC663 plus samples in a HVQFN package.
- Highest RF performance
- Low power card detection
- Compliance with all standards relevant to contactless NFC reader operation and EMVCo 2.6
- Artificial damping of the RF field in the middle of the antenna simulating the presence of a PCB or display to demonstrate the expected performance
- LPC1769 MCU on board, SPI interface accessible for connection of other MCU
Spécifications techniques
Kit Application Type
Access Management
Silicon Core Number
CLRC663 plus
Kit Contents
Dev Kit CLRC663 plus
SVHC
No SVHC (27-Jun-2024)
Silicon Manufacturer
NXP
Application Sub Type
NFC Frontend Development
Product Range
-
Documents techniques (2)
Législation et Questions environnementales
US ECCN:5A992
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (27-Jun-2024)
